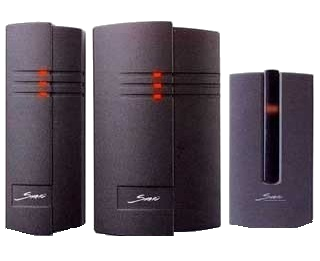

RF10/RF20/RFTINY

Proximity, Keypad & Proximity Card Reader

The STAR RF10/20 and RF TINY (compact size &modern design) and a new attractive 4 (10cm)read range Proximity Reader which can be used in various Industrial applications (Access Control,Factory Automation, etc.).
It is designed to mount on metal door frame (mullion)with several fascinating colors.
Any of OEM proprietary format is available and it supports Wiegand format as well as RS232,ABA Track II magstripe format, Addressable RS422 and TTL output.
These communications will allow you various applications in many industries.
The electronics reader parts in epoxy potting will ensure you its successful operations even in harsh environments(vandal proof) and indoor /outdoor (100%weather proof).
The elegant looking reader case is designed to match any interior decoration of ultramodern buildings.
Two color LED of green and red,inside digital buzzer sound will guarantee you an accurate system operation.


Features
Up to 4"(10cm) read range
User format available
Wiegand, RS232C, ABA track II magstripe format  available
Metal door frames, mullion (RF10 / RF TINY), and wall mount   (RF20)
PSK, FSK, ASK modulation
Epoxy potted
100% Weather Poof

Dimension

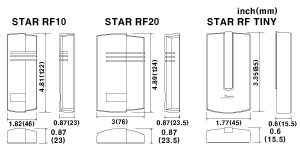

FR10/20 dimension
Specifications
Read Range IDK50 : 2 inch(5cm)
IDC170 : 4 inch(10cm)
IDC80 : 4 inch(10cm)
Reading Time 30ms
Input voltage / Current
DC5~12V, max 180mA(@DC12V RS232C output)
Output format 26bit Wiegand, RS232C and ABA track II magstripe format
External Buzzer control input Low active, DC0~5V, max. 50mA, Impedance 10K ohm
External LED control Input Low active, DC0~5V, max. 50mA, Impedance 10K ohm
LED/Buzzer 2-color LED (red and green). Piezo Buzzer
Operating Environment -35°C ~ +65°C (-31°F ~ 149°F)
Color Dark Pearl Gray
Weight RF10 : 160g(0.35 lbs)
RF20 : 185g(0.41 lbs)
RF TINY : 80g(0.18 lbs)
