מסופון אנדרואיד, מסך מגע איכותי וגדול. מוקשח ומתאים
לעבודה. מוגן מים, עמיד לנפילות ומכות, מתאים לעבודה בחוץ בכל מזג אויר.
בטריה חזקה נשמרת לאורך זמן. סורק ברקוד מובנה לסריקה מהירה ונוחה. מעבד
חזק ועוצמתי.
WIFI, WLAN, LTE GSM, BLUETOOTH, NFC ועוד
Specifications
WIRELESS COMMUNICATIONS
Local area network (WLAN)
IEEE 802.11 a/b/g/n/ac and 802.11 k/r/v;
Frequency range: Country dependent, typically 2.4GHz
and 5GHz bands
Personal area network (WPAN)
Bluetooth wireless technology v4.2 (Classic Bluetooth wireless technology and BLE)
Ncf Communication
Support
for the following standards: ISO14443-4 (type-A, type-B); ISO15693;
Mifare; Felica WWAN / cellular LTE-Advanced/4G+; Cat 6
DECODING CAPABILITY
1D / linear codes
Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D codes
Aztec Code, Data Matrix, HanXin Code, MaxiCode, MicroQR Code, QR Code, UPU FICS, USPS Intelligent Mail
Postal codes
Australian Post, Japan Post, KIX Code, PLANET, POSTNET, Royal Mail Code (RM4SCC)
Stacked Codes
Micro-PDF417,
PDF417, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1
DataBar Stacked, GS1 DataBar Stacked Omnidirectional
ELECTRICAL
Battery Replaceable battery pack with rechargeable Li-Ion batteries; 3.8v; 4,100 mAh (15.6 Watt-hours)
Wireless charging Qi Compliant; 10 Watt fast charging
ENVIRONMENTAL
Drop resistance
Withstands
drops from 1.5 m / 5.0 ft onto concrete (with rubber boot); Withstands
drops from 1.2 m / 4.0 ft onto concrete (without rubber boot). Tested
onto steel/concrete according to IEC 68-2-32 Method 2 and MIL STD 810G
Transit drop test.
Tumbles
Withstands 1000 hits from 0.5 m / 1.6 ft and 250 hits from 1.0 m / 3.2 ft per IEC 600-2-32 with rubber boot;
Withstands 600 hits from 0.5 m / 1.6 ft per IEC 600-2-32 without rubber boot
Particulate and water sealing IP65
Chemical resistance Chemical cleanser and industrial oil resistant (both Standard and Healthcare models)
Healthcare cleanable Isopropyl Alcohol, Hydrogen Peroxide, Clorox® Bleach; applicable for both the device and cradles
Temperature
Operating: -20 to 50 ºC / -4 to 122 ºF
Storage/Transport: -30 to 70 ºC / -22 to 158 ºF
INTERFACES
Interfaces
High Speed USB 2.0 Host and Client with USB
Type C connector
SENSORS
Vibration Software programmable for duration and intensity
Accelerometer 3-Axis accelerometer to detect orientation
Gyroscope Senses angular velocity
Ambient light Auto adjusts display backlight
Proximity Auto deactivates display when close to face

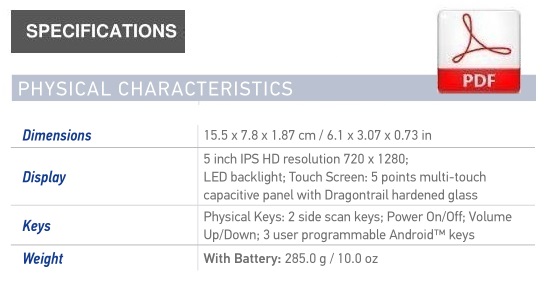

PHYSICAL CHARACTERISTICS
Dimensions 15.5 x 7.8 x 1.87 cm / 6.1 x 3.07 x 0.73 in
Display
5 inch IPS HD resolution 720 x 1280;
LED backlight; Touch Screen: 5 points multi-touch
capacitive panel with Dragontrail hardened glass
Keys
Physical Keys: 2 side scan keys; Power On/Off; Volume
Up/Down; 3 user programmable Android™ keys
Weight With Battery: 285.0 g / 10.0 oz
READING PERFORMANCE
Camera Resolution: 13 megapixel; Illumination: User controllable LED flash; Lens: Auto focus
Scan engine
2D Ultra slim area imager (supports 1D / 2D codes);
Datalogic’s ‘Green Spot’ for good-read feedback;
Depth of Field: 8.5 to 50 cm / 3.3 to 19.7 in depending on bar code density and type;
Resolution: VGA (640 x 480 pixels);
Illumination: White LEDs; Aiming: 650nm VLD;
Field of View: 48°H x 34°V
Print contrast (minimum) 25%
Minimum element width
1D Linear: 0.0762 mm / 4 mils
PDF: 0.127 mm / 6.6 mils
Data Matrix: 0.195 mm / 7.5 mils
SAFETY & REGULATORY
Agency Approvals The product meets necessary safety and regulatory approvals for its intended use.
Environmental Compliance Complies to EU RoHS
SOFTWARE
Applications Datalogic’s SoftSpot technology for configurable soft triggers; Supports Datalogic’s Queue Busting app;
Pre-licensed device and browser lockdown powered by 42Gears; Enterprise class PTT offered by Zello
Provisioning Android Zero Touch enrollment and QR Code or NFC Bump provisioning
Configuration and maintenance Datalogic DXU for device configuration and firmware upgrade from PC
Development Java and Xamarin SDK available
MDM SOTI MobiControl, VMWare AirWatch, Wavelink Avalanche, 42Gears SureMDM
Terminal emulation StayLinked SmartTE, Wavelink Velocity
SYSTEM
Expansion slots
Micro-SD card slot: Compatible with Micro SD-HC cards;
Data transfer up to 48 Mbps; User-accessible
Memory System RAM: 3 GB; eMMC Flash: 32 GB
Microprocessor 2 GHz Octa-core
Operating System Android v8.1 with GMS
Reak-time clock Time and date stamping under software control
WARRANTY
Warranty 1-Year Factory Warranty
