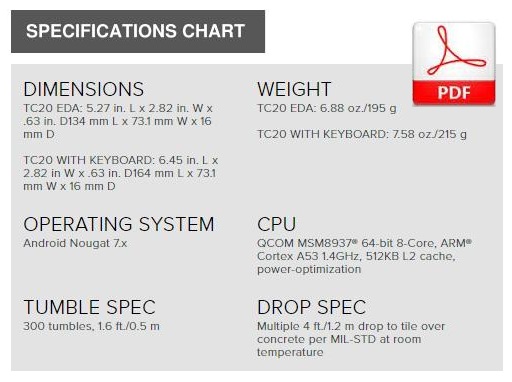

Specifications
DIMENSIONS
TC20 EDA: 5.27 in. L x
2.82 in. W x .63 in. D134 mm L x 73.1 mm W x 16
mm D
TC20 WITH KEYBOARD:
6.45 in. L x 2.82 in W x .63 in. D164 mm L x 73.1
mm W x 16 mm D
WEIGHT
TC20 EDA:
6.88 oz./195 g
TC20 WITH KEYBOARD:
7.58 oz./215 g
OPERATING
SYSTEM
Android Nougat 7.x
CPU
QCOM MSM8937® 64-bit 8-Core, ARM® Cortex A53 1.4GHz, 512KB L2 cache,
power-optimization
TUMBLE
SPEC
300 tumbles, 1.6 ft./0.5 m
DROP
SPEC
Multiple 4 ft./1.2 m drop to tile over concrete per MIL-STD at room
temperature
DATA
CAPTURE
Scanning
- SE2100 1D/2D imager
- SE4710 1D/2D imager + rear camera
Rear Camera
8MP autofocus color camera with flash
RFID RFD2000
UHF RFID snap-on sled
WIRELESS
LAN
WLAN Radio
802.11 a/b/g/n/ac/d/r/h/i IPv4, IPv6
Data Rates
- 2.4 GHz: 20 MHz, 40 MHz
- 5 GHz: 20 MHz, 40 MHz, 80 MHz
Operating Channels
- 2.4 GHz (channels 1-13; 1-11(US))
- 5GHz (channels 36-48, 52-64, 100-144, 149-165)
- Actual operating channels/ frequencies and bandwidths
depend on regulatory rules andcertification agency.
Security and Encryption
WPA/WPA2 (PSK & Enterprise 802.1x); EAPTTLS;PEAPv0-MSCHAPv2;
EAP-TLS
Certifications
802.11a/b/g/n; WPA; WPA2 Fast Roam 802.11r
WIRELESS
PAN
Bluetooth
Bluetooth 4.2 BLE
