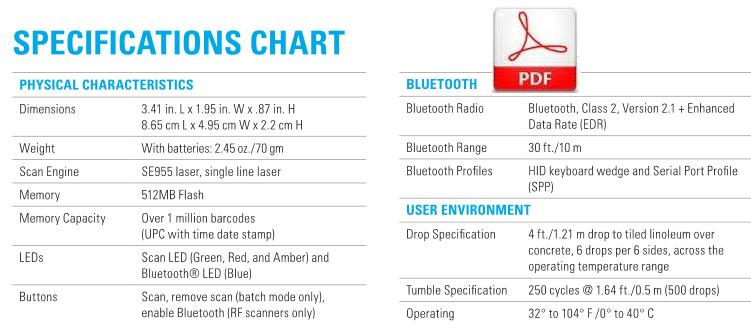

Specifications
PHYSICAL CHARACTERISTICS
Dimensions 3.41 in. L x 1.95 in. W x .87 in. H
8.65 cm L x 4.95 cm W x 2.2 cm H
Weight With batteries: 2.45 oz./70 gm
Scan Engine SE955 laser, single line
Memory 512MB Flash
Memory Capacity Over 1 million barcodes (UPC with time date stamp)
LEDs Scan LED (Green, Red, and Amber) and Bluetooth® LED (Blue)
Buttons Scan, remove scan (batch mode only), enable Bluetooth (RF
scanners only)
OPERATING MODES
Batch Scans recorded with optional time/date stamp
Open Bluetooth Real time wireless data transmission
BATTERY
Battery 780 mAh Lithium ion
Charge Time 3 hours
Battery Life Batch - 24 hours use or 8,500 scans (6 scans per minute on
full charge)
Standby - 3 months Bluetooth - 12 hours use or 4,250 scans (6 scans per
minute on full charge)
Power Consumption 5V, 500mA max while charging
PERFORMANCE
CHARACTERISTICS
Decode Capability 1-D symbologies
Interfaces Supported USB (Mini jack): CS3000 and CS3070
Bluetooth: CS3070
Real Time Clock A date/time stamp can be recorded with each bar code
scanned (Batch mode operation only)
Batch Communication USB 2.0
BLUETOOTH
Bluetooth Radio Bluetooth, Class 2, Version 2.1 + Enhanced Data Rate
(EDR)
Bluetooth Range 30 ft./10 m
Bluetooth Profiles HID keyboard wedge and Serial Port Profile (SPP)
USER ENVIRONMENT
Drop Specification 4 ft./1.21 m drop to tiled linoleum over concrete, 6
drops per 6 sides, across the operating temperature range
Tumble Specification 250 cycles @ 1.64 ft./0.5 m (500 drops)
Operating Temperature 32° to 104° F /0° to 40° C
Storage Temperature -40° to 158° F /-40° to 70°C
Humidity 10 to 95% noncondensing
Ambient Lighting Tolerance Tolerant to typical artificial indoor and
natural outdoor (direct sunlight) lighting conditions. Fluorescent,
Incandescent, Mercury Vapor, Sodium Vapor, LED1: 450 Ft Candles (4,844
Lux) Sunlight: 8000 Ft Candles (86,111 Lux)
REGULATORY
Laser Safety EN 60825-1, IEC 60825-1, 21CFR1040.10
EMC CS3000: FCC Part 15 Class B, ICES 003 Class B, EN 55022, EN 55024
CS3070: FCC Part 15 Class B, ICES 003 Class B, EN 55022, EN 55024, EN
301 489-1, EN 301 489-17
Radio CS3070: EN 300 328
Electrical Safety UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1
Environmental RoHS Directive 2002/95/EEC
WARRANTY
Warranted against defects in workmanship and materials for a period of
twelve (12) months
DECODE RANGE
4 mil: 0.90 – 4.90 in. / 2.3 – 12.4 cm
5 mil: 1.20 – 7.40 in. / 3.0 – 18.8 cm
7.5 mil: 1.60 – 12.40 in. / 4.1 - 31.5 cm
10 mil: 1.60 – 17.40 in. / 4.1 – 44.2 cm
100% UPC: 1.60 – 23.40 in. / 4.1 – 59.4 cm
15 mil: 1.60 – 24.40 in. / 4.1 – 62.0 cm
20 mil: 1.90 – 25.40 in. / 4.8 – 64.5 cm
40 mil: *- 27.40 in. / * - 69.6 cm
55 mil: *- 31.40 in. / * - 79.8 cm
*Minimum distance determined by symbol length and scan angle
* LED lighting with high AC ripple content can impact scanning
performance
